Supports manual setting for PoE port power limitation
Each port supports auto MDI/MDIX, so there is no need to use cross-over cables or an up-link port
Full/half duplex transfer mode for each port
Wire speed reception and transmission
Store-and-Forward switching scheme capability to support rate adaptation and ensure data integrity
Up to 4K unicast addresses entities per device, self-learning, and table aging
768KBytes packet buffer
Supports IEEE 802.3x flow control for full-duplex mode ports
Supports Back-pressure flow control for half-duplex mode ports
Supports Port based VLAN
Supports Port based Trunking
Supports Port-mirroring
Supports Port-setting for Speed/Disable, Flow control, QoS
Easy configuration via WEB Browser
Easy setting via Web Management Utility
Standard 19 Rack-mount size

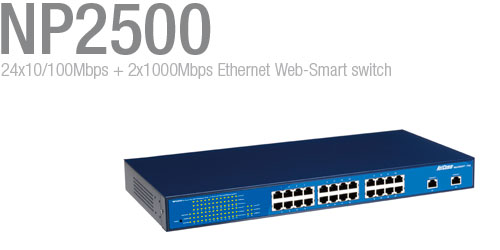

The NetComm NP2500 has been designed specifically for the SME and Branch Office markets. Offering 24 ports the NP2500 provides PoE and switching functionality, scalability and flexibility to the modern small to medium enterprise.

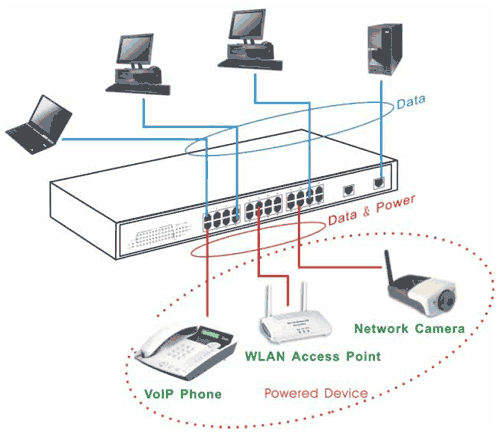

With 24 PoE ports delivering 802.3af standard based PoE on both 10/100Mbps and 10/100/1000Mbps ports it offers cost-effective implementation of devices requiring LAN based power.
